Sharp regression discontinuity with `pymc` models#

import causalpy as cp

%load_ext autoreload
%autoreload 2
%config InlineBackend.figure_format = 'retina'
seed = 42

df = cp.load_data("rd")

Linear, main-effects, and interaction model#

Note

The random_seed keyword argument for the PyMC sampler is not necessary. We use it here so that the results are reproducible.

result = cp.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + x + treated + x:treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
)

fig, ax = result.plot()

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, y_hat_sigma]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 1 seconds.
Sampling: [beta, y_hat, y_hat_sigma]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

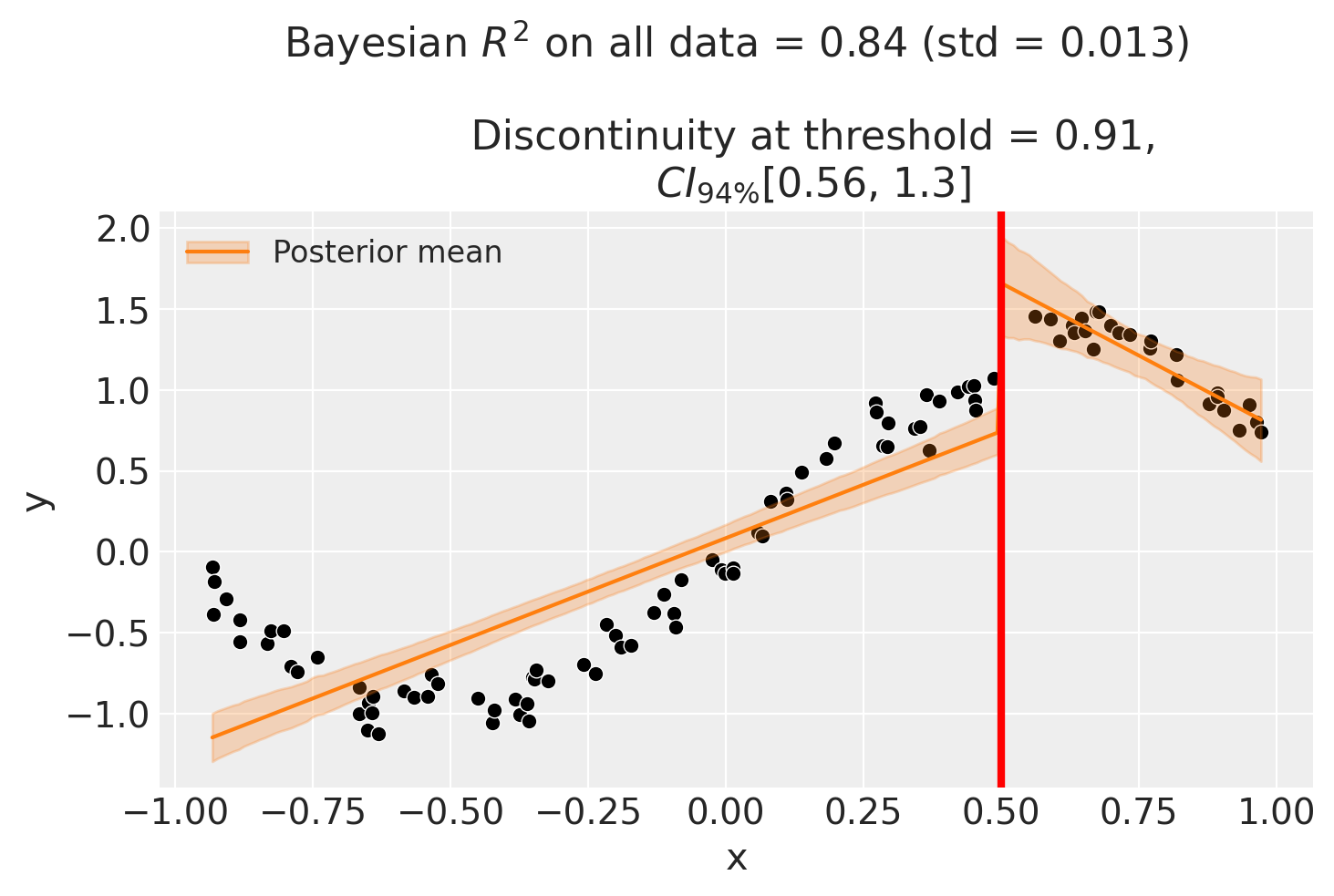

../_images/8ed77edd75e2246f0f7ce7ef210f3bb00f5e06bb937c3825ab446619b33e3c39.png

Though we can see that this does not give a good fit of the data almost certainly overestimates the discontinuity at threshold.

Using a bandwidth#

One way how we could deal with this is to use the bandwidth kwarg. This will only fit the model to data within a certain bandwidth of the threshold. If \(x\) is the running variable, then the model will only be fitted to data where \(threshold - bandwidth \le x \le threshold + bandwidth\).

result = cp.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + x + treated + x:treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
    bandwidth=0.3,
)

fig, ax = result.plot()

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, y_hat_sigma]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 3 seconds.
There were 3 divergences after tuning. Increase `target_accept` or reparameterize.
Sampling: [beta, y_hat, y_hat_sigma]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

We could even go crazy and just fit intercepts for the data close to the threshold. But clearly this will involve more estimation error as we are using less data.

result = cp.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
    bandwidth=0.2,
)

fig, ax = result.plot()

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, y_hat_sigma]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 1 seconds.
Sampling: [beta, y_hat, y_hat_sigma]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

Using basis splines#

Though it could arguably be better to fit with a more complex model, fit example a spline. This allows us to use all of the data, and (depending on the situation) maybe give a better fit.

result = cp.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + bs(x, df=6) + treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
)

fig, ax = result.plot()

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, y_hat_sigma]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 1 seconds.
Sampling: [beta, y_hat, y_hat_sigma]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

As with all of the models in this notebook, we can ask for a summary of the model coefficients.

result.summary()

Difference in Differences experiment
Formula: y ~ 1 + bs(x, df=6) + treated
Running variable: x
Threshold on running variable: 0.5

Results:
Discontinuity at threshold = 0.41$CI_{94\%}$[0.23, 0.59]


Model coefficients:
    Intercept        -0.23, 94% HDI [-0.32, -0.14]
    treated[T.True]  0.41, 94% HDI [0.23, 0.59]
    bs(x, df=6)[0]   -0.59, 94% HDI [-0.79, -0.41]
    bs(x, df=6)[1]   -1.1, 94% HDI [-1.2, -0.93]
    bs(x, df=6)[2]   0.28, 94% HDI [0.11, 0.43]
    bs(x, df=6)[3]   1.7, 94% HDI [1.5, 1.8]
    bs(x, df=6)[4]   1, 94% HDI [0.67, 1.4]
    bs(x, df=6)[5]   0.57, 94% HDI [0.37, 0.76]
    y_hat_sigma      0.1, 94% HDI [0.089, 0.12]

Effect Summary Reporting#

For decision-making, you often need a concise summary of the causal effect. The effect_summary() method provides a decision-ready report with key statistics. Note that for Regression Discontinuity, the effect is a single scalar (the discontinuity at the threshold), similar to Difference-in-Differences.

# Generate effect summary
stats = result.effect_summary()
stats.table

	mean	median	hdi_lower	hdi_upper	p_gt_0
discontinuity	0.408901	0.406947	0.229298	0.595095	1.0

print(stats.text)

The discontinuity at threshold was 0.41 (95% HDI [0.23, 0.60]), with a posterior probability of an increase of 1.000.

You can customize the summary with different directions and ROPE thresholds:

Direction: Test for increase, decrease, or two-sided effect
Alpha: Set the HDI confidence level (default 95%)
ROPE: Specify a minimal effect size threshold

# Example: Two-sided test with ROPE
stats = result.effect_summary(
    direction="two-sided",
    alpha=0.05,
    min_effect=0.2,  # Region of Practical Equivalence
)
stats.table

	mean	median	hdi_lower	hdi_upper	p_two_sided	prob_of_effect	p_rope
discontinuity	0.408901	0.406947	0.229298	0.595095	0.0	1.0	0.98875

print("\n" + stats.text)

The discontinuity at threshold was 0.41 (95% HDI [0.23, 0.60]), with a posterior probability of an effect of 1.000.
